Welded Wire Mesh
Welded Wire Mesh is made of high quality iron wire through automatic process and sophisticated welding technique, laid horizontally and vertically, individually welded at every intersection. The end products is level and flat with sturdy structure.
Welded Wire Mesh is extensively used in industry and agriculture, building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fencing.
We Can Supply The Following kinds of finish:
*Hot-Dipped Galvanised After Welding
*Hot-Dipped Galvanised Before Welding
*Electric-Galvanised After Welding
*Electric-Galvanized Before Welding
*PVC-Coated
*In Stainless Steel
PACKING:
1.Standard roll length: 30m; width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Each roll shrink wrapped. Custom packing available at request.
|

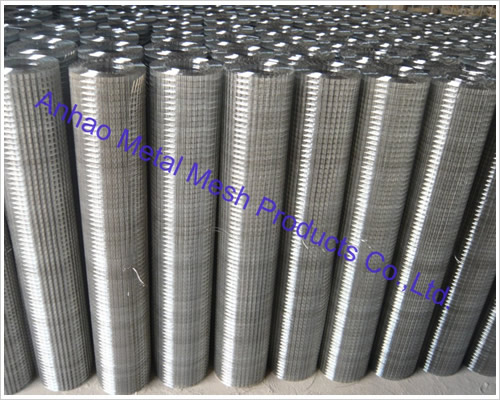

Welded wire mesh roll |
|||
|
Specification SWG |
Net weight (kg) |
Quantity(roll)/20‘GP |
Roll outside diameter(mm) |
|
14# 1"×1" 3'×100' |
62.5 |
235 |
380 |
|
15# 1"×1" 3'×100' |
43 |
252 |
360 |
|
16# 1"×1" 3'×100' |
36.5 |
252 |
350 |
|
16# 1"×1/2" 3'×100' |
55.5 |
252 |
350 |
|
17# 1"×1" 3'×100' |
29 |
330 |
329 |
|
17# 1"×1/2" 3'×100' |
43.5 |
330 |
330 |
|
18# 1"×1" 3'×100' |
21.5 |
366 |
300 |
|
18# 1"×1/2" 3'×100' |
32.5 |
366 |
320 |
|
18# 1/2"×1/2" 3'×100' |
43.5 |
366 |
320 |
|
19# 1/2"×1/2" 3'×100' |
30 |
480 |
270 |
|
19# 1"×1/2" 3'×100' |
25 |
480 |
270 |
|
20# 1" ×1" 3'×100' |
12 |
510 |
250 |
|
20# 1/2"×1/2" 3'×100' |
24 |
500 |
260 |
|
21# 1/2"×1/2" 3'×100' |
17.5 |
650 |
230 |
|
22# 1/2"×1/2" 3'×100' |
15 |
720 |
220 |
|

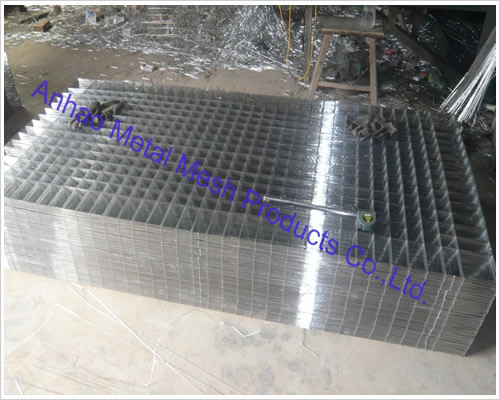

Welded wire mesh panel |
|||
|
Size |
Mesh (CM) |
Wire dia. (MM) |
Weight (KG) |
|
1MX2M |
3X3 |
2.0 |
3.22 |
|
1MX2M |
3X3 |
3.0 |
7.03 |
|
1MX2M |
3X3 |
4.0 |
12.10 |
|
1MX2M |
5X5 |
2.0 |
2.00 |
|
1MX2M |
5X5 |
3.0 |
4.34 |
|
1MX2M |
5X5 |
4.0 |
7.72 |
|
1MX2M |
8X8 |
2.0 |
1.29 |
|
1MX2M |
8X8 |
3.0 |
2.91 |
|
1MX2M |
8X8 |
4.0 |
5.18 |
|
Black panel |
Pvc coated panel |
||||||
|
|
Wire dia. |
Mesh(cm) |
L |
W |
|
Before/After dia. |
|
|
8# |
4.05 |
2 |
4 |
2 |
10.17 |
4.05/4.85 |
10.89 |
|
9# |
3.65 |
2 |
4 |
2 |
8.26 |
3.65/4.45 |
8.75 |
|
10# |
3.25 |
2 |
4 |
2 |
6.54 |
3.25/4.05 |
6.99 |
|
11# |
2.94 |
2 |
4 |
2 |
5.35 |
2.94/3.54 |
5.72 |
|
12# |
2.64 |
1 |
3 |
1.2 |
8.68 |
2.64/3.24 |
9.20 |
|
13# |
2.33 |
1 |
3 |
1.2 |
6.76 |
2.33/2.83 |
7.16 |
|
14# |
2.03 |
1 |
3 |
1.2 |
5.13 |
2.03/2.53 |
5.43 |
