Raw material : Galvanized steel
Mesh size: 27”*96”
Weight: 2.3kg/sheet
500sheets/pallet,
Total 18pallets/20’GP
SWD of expanded metal lath: 10mm
Lwd of expanded metal lath: 25mm
Strand width: 1.58mm

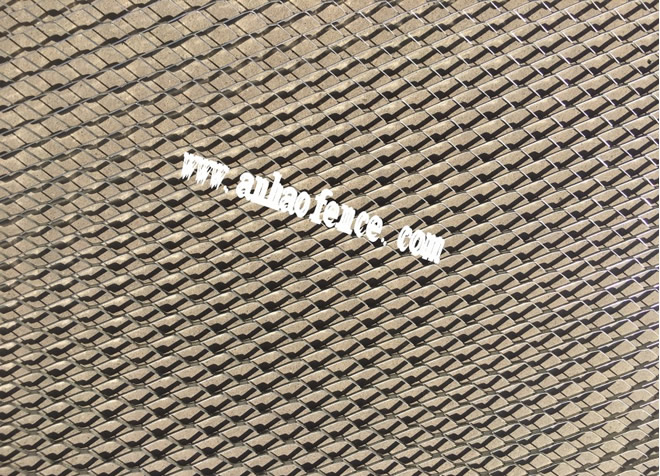

Diamond Mesh Lath is produced from thin galvanized steel strip, its LWD are lined regularly, and the mesh strand formed
diamond shape with special structure, Self-furring embossed "V" groove holds the lath away from the surface to
aid in the keying of stucco to the lath.
Application: wall, reinforcing, construction crack, Plasterer network in industry, civil construction, irrigation, municipal,
transportation, road, infrastructure and other projects, mainly for residential wall plaster, decorative building, repairing
and reinforcing the warehouse.
Mesh size: 27" x 96"
Modle |
Type |
Size |
Piece/Bundle |
Piece/Torr |
AH-ML1.75 |
1.75LBS |
27"*96" |
10 |
500 |
AH-ML2.5 |
2.5LBS |
27"*96" |
10 |
500 |
AH-ML3.4 |
3.4LBS |
27"*96" |
10 |
500 |
1.Stucco lath
2.V-groove plaster mesh
3.Paper back metal lath
4.Dimpled plaster mesh
Installation:

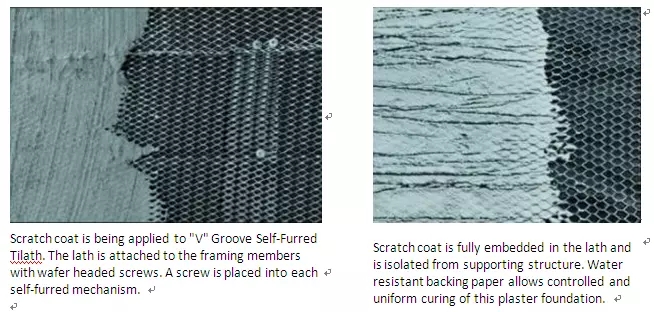

Scratch coat is being applied to "V" Groove Self-Furred Tilath. The lath is attached to the framing members with wafer headed screws. A screw is placed into each self-furred mechanism.
