Curvy Fence
[From：Anhao] [Author：admin] [Date：12-06-12]

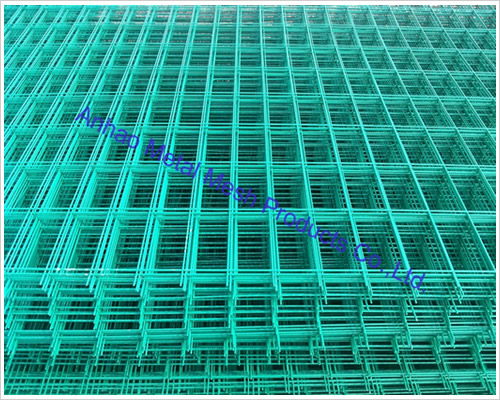

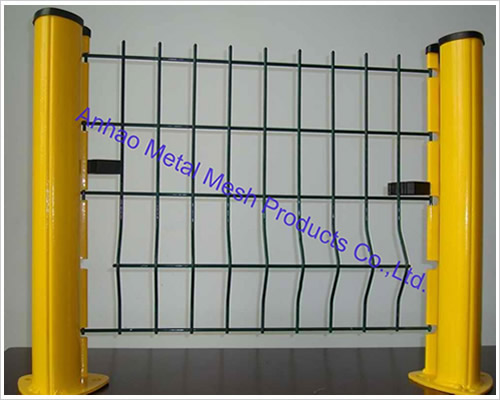

Curvy Welded Fence or Welded Mesh Panel, is reinforced with “V” foldings to increase the rigidity and strength. All panels have a 30mm barbed top edge for anti-climbing(agnail can be placed on top or bottom).
Coating: The panels are made with hot dip galvanized wire then powder coated.
Colors: Colors are available in green, white, black, others available on request.
Specifications:
Steel wire diameter 4mm, 4.5mm, 5mm.
Welding wire mesh has 1030-2230mm at different heights
Mesh size: 50*100, 55*200, 60*200, 65*200, 75*200mm
Sizes Available:
|
Fence Height(mm) |
Fence Length(mm) |
No. Of “V” Foldings |
|
830 |
2000 or 2500 |
2 |
|
1030 |
2000 or 2500 |
2 |
|
1230 |
2000 or 2500 |
2 |
|
1530 |
2000 or 2500 |
3 |
|
1830 |
2000 or 2500 |
4 |
|
2030 |
2000 or 2500 |
4 |
